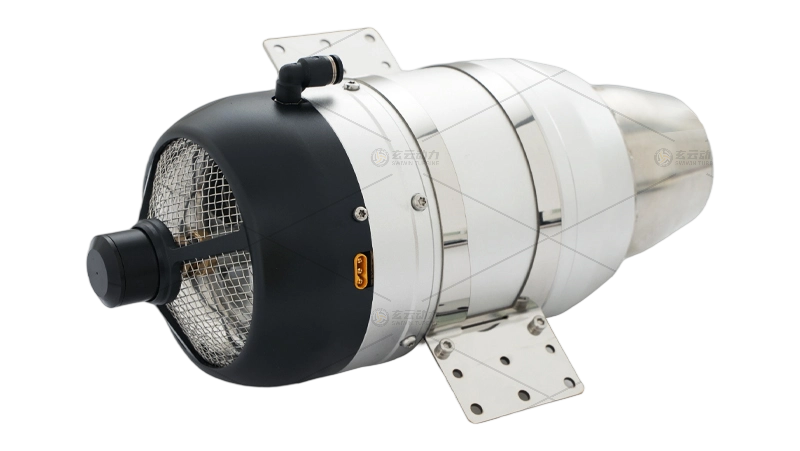

Thrust:19kg
Diameter:109.5mm
Length:260mm
Weight:1500g
Speed range:38000～118000
Idle RPM:38000
Rated exhaust Max Temp:750℃
Fuel consumption:≤550g/min
Fuel used:Aviation kerosene
Lubricating oil:3%～5%
Maintenance cycle: 25H
Power line
Throttle line
Signal line
GSU
Brushless Fuel Pump
ECU(V3)
Filter
Switch Valve
| Engine start | Engine operation | Starting motor | |||
| Pump Voltage | 0.5-1V | RPM ACC | 25 | Eject time | 0.5S |
| RPM Start Up Ramp | 100 | RPM DEC | 25 | Ejection Low Volt | 3.5V |
| Pump Start Up Ramp | 3 | Idle RPM range | 28000～118000 | Run Voltage | 4V |
| Glow Plug | 5-7V | Idle RPM | 38000 | RPM Stable | 50 |
| Valve | 40 | Max Temp | ≤1000 | Cooling | 5000 |
| Ignition RPM | 3000 | Low Volt | ≥10V | ||
| Preheat RPM | 5000 | Restart | Off | ||
| RPM Off Starter | 22000 | Restart Glow Plug | Consistent with the fire head Low Volt | ||
| Pump Limit | 11V | ||||
| Ldle Stable | 5-8 | ||||
RPM:97,000
6 mm Oil in 4 mm Oil delivery
√ Using only one bus to transmit data signals,
√ More stable communication between the engine and the control system
√ The connection is more convenient and concise
32 Bit element high-Speed range chip
Satisfy 4800 m Plateau starting
Flight ceiling 12000 m
